日本RIBM HS-AFM超高速視頻級原子力顯微鏡上市
超高速視頻級原子力顯微鏡（Sample-Scanning High-Speed Atomic Force Microscope ，HS-AFM SS-NEX）是由日本 Kanazawa 大學 Prof. Ando 教授團隊歷經數十年研發而成的，也是世界上臺可以達到視頻級成像的商業化原子力顯微鏡。
相較于目前市場上的原子力顯微鏡成像設備，HS-AFM突破了 “掃描成像速慢”的限制，掃描速度最高可達 20 frame/s，并且有 4 種掃描臺可供選擇。樣品無需特殊固定染色，不影響生物分子的活性，尤其適用于生物大分子互作動態觀測。液體環境下直接檢測，超快速動態成像，分辨率為納米水平。探針小，適用于生物樣品；懸臂探針共振頻率高，彈簧系數小，避免了對生物樣品等的損傷。懸臂探針可自動漂移校準，適用于長時間觀測。采用動態PID控制，高速掃描時仍可獲得清晰的圖像。XY軸分辨率2nm；Z軸分辨率0.5nm。
超高速視頻級原子力顯微鏡HS-AFM推出至今，全球已有80多位用戶，發表 SCI 文章 200 余篇，包括Science, Nature, Cell 等雜志。
HS-AFM超高速視頻級原子力顯微鏡應用案例：

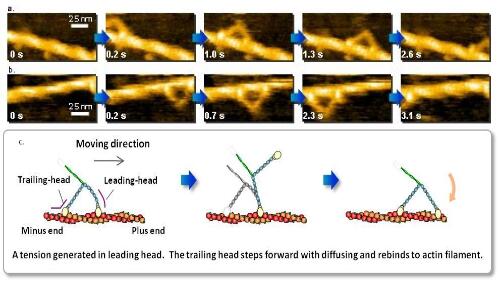

1.Video imaging of walking myosin V 實時觀察myosin V蛋白的運動
N. Kodera et al. Nature 468, 72 (2010). Kanazawa University

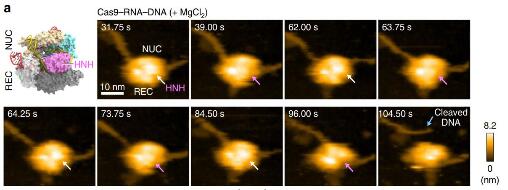

2.Real-space and real-time dynamics of CRISPR-Cas9 實時顯示CRISPR基因編輯
Mikihiro et al. Nature Communications, (2017). Kanazawa University
3. High-speed atomic force microscopy shows that annexin V stabilizes membranes on the second timescale
Miyagi A, et al. Nature Nanotechnology (2016)

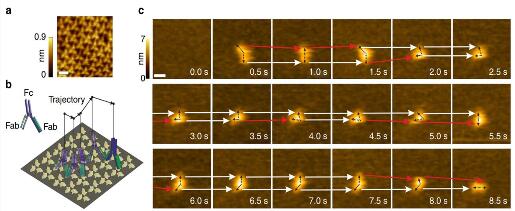

4. IgGs are made for walking on bacterial and viral surfaces
J Preiner, et al. Nature Communications(2014)

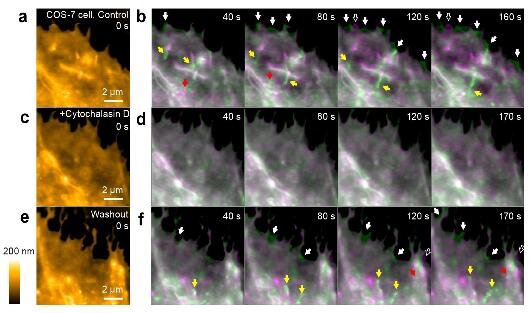

5. Long-tip high-speed atomic force microscopy for nanometer-scale imaging in live cells
Mikihiro Shibata, et al. Scientific Reports(2015)

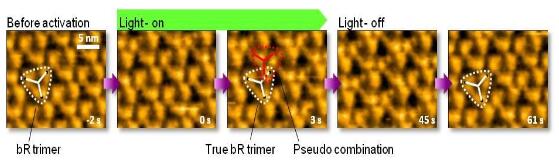

6. High-speed atomic force microscopy shows dynamic molecular processes in photoactivated bacteriorhodopsin
Shibata M, et al. Nature Nanotechnology (2010)
7. Tuning crystallization pathways through sequence engineering of biomimetic polymers
Xiang Ma, et al. Nature Materials (2017)

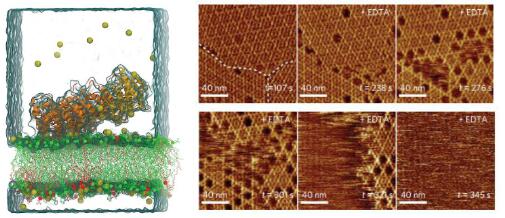

8. Lipid-bilayer-assisted two-dimensional self-assembly of DNA origami nanostructures
Yuki Suzuki, et al. Nature Communications(2015)

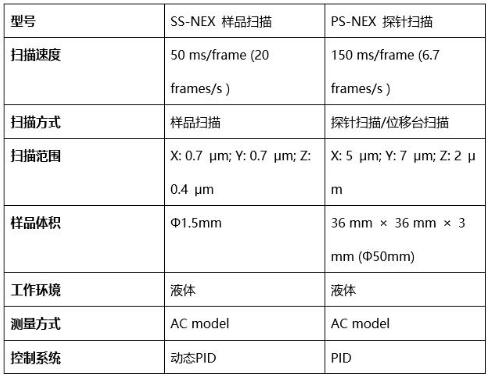

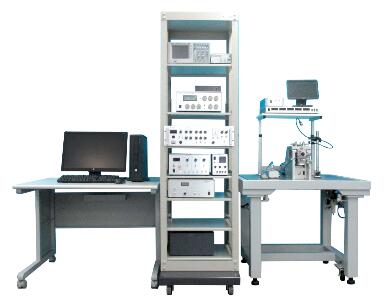

HS-AFM超高速視頻級原子力顯微鏡設備規格及配置參數：
基本參數：

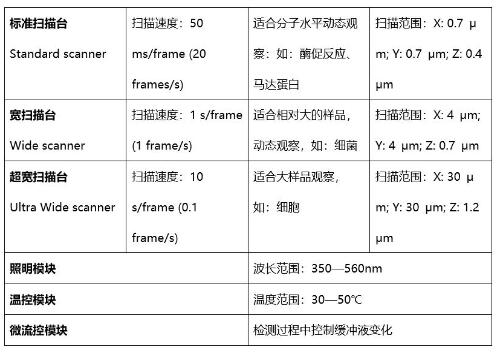

SS-NEX 型可選配置：
