如何利用脈沖場電泳系統進行長片段基因組DNA質控？
瀏覽次數：1287 發布日期：2023-9-28
來源：本站 僅供參考，謝絕轉載，否則責任自負
如何進行長片段基因組DNA質控？—Pippin Pulse脈沖場電泳系統
隨著三代測序技術的發展和普及，全基因組測序技術也取得了長足發展。基因組DNA文庫的制備質量直接影響測序結果，因而基因組DNA的質控越來越受到重視。而實驗室常規的瓊脂糖凝膠電泳只能分離20kb以下的DNA分子，當DNA分子大于20kb時，就無法實現有效分離。
針對超長DNA片段的分離和質控，美國Sage Science公司擁有超高性價比的Pippin Pulse脈沖場電泳系統。Pippin Pulse使用簡單，無專用耗材，自帶預設程序，能很好的電泳分離0.5Kb到430Kb的基因組DNA片段。Pippin Pulse具有一個簡單的軟件界面，自帶6種預設程序，可以直接分離多種不同大小范圍DNA長片段，此外，軟件還支持自定義模式，用戶可以自編程分離不同范圍的DNA片段。Pippin Pulse包括電源、電泳槽、操控儀器的電腦和用戶手冊，無特殊耗材，使用成本低，經濟耐用。

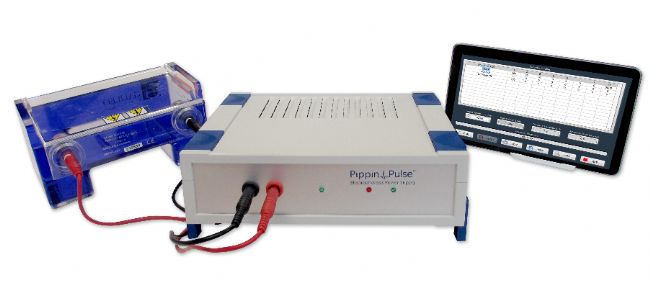

Pippin Pulse脈沖場電泳系統

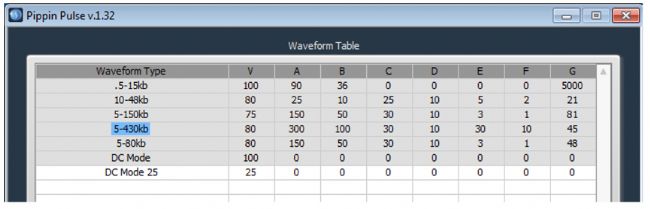

Pippin Pulse脈沖場電泳系統預設程序

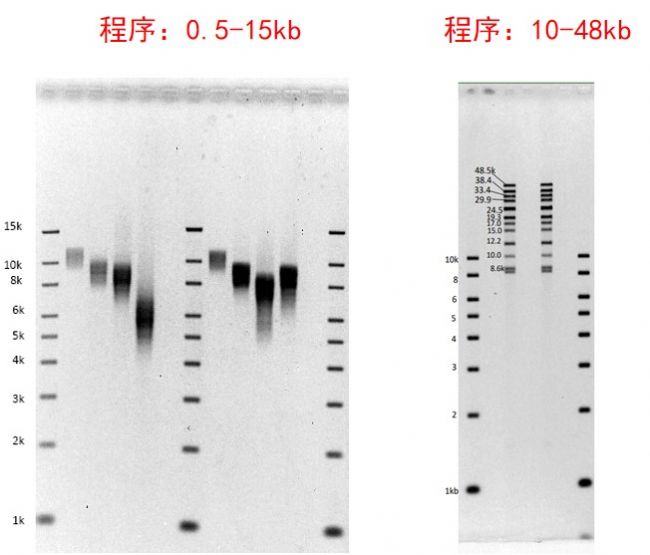

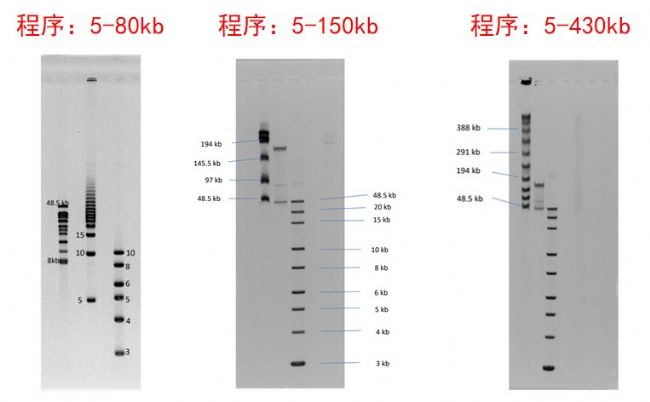

Pippin Pulse脈沖場電泳系統結果圖示
Pippin Pulse脈沖場電泳系統應用案例（部分展示）
1. Pippin Pulse 與PacBio三代測序儀聯用，控制文庫片段分布，充分發揮長片段測序優勢
- Takeuchi, Tadashi, et al. "Fatty acid overproduction by gut commensal microbiota exacerbates obesity." Cell Metabolism (2023).
|
- Hadzhiev, Yavor, et al. "The miR-430 locus with extreme promoter density forms a transcription body during the minor wave of zygotic genome activation." Developmental Cell 58.2 (2023): 155-170.
|
- Kurokochi, Hiroyuki, et al. "Telomere-to-telomere genome assembly of matsutake (Tricholoma matsutake)." DNA Research 30.3 (2023): dsad006.
|
- Hixson, Kim K., et al. "Annotated genome sequence of a fast-growing diploid clone of red alder (Alnus rubra Bong.)." G3: Genes, Genomes, Genetics (2023): jkad060.
|
- Field, Matt A., et al. "The Australian dingo is an early offshoot of modern breed dogs." Science Advances (2022): eabm5944.
|
- Pootakham, Wirulda, et al. "A Chromosome-Scale Genome Assembly of Mitragyna speciosa (Kratom) and the Assessment of Its Genetic Diversity in Thailand." Biology 11.10 (2022): 1492.
|
- Rahman, M. Julhasur, et al. "LINE-1 retrotransposons facilitate horizontal gene transfer into poxviruses." Elife 11 (2022): e63327.
|
- Zhao, Qing, et al. "The reference genome sequence of Scutellaria baicalensis provides insights into the evolution of wogonin biosynthesis." Molecular plant 12.7 (2019): 935-950.
|
2. Pippin Pulse 與 Nanopore三代測序儀聯用，質控更長、更高質量的DNA，進一步提升測序長度
- Long, Meng, et al. "Comparative genomic analysis provides insights into taxonomy and temperature adaption of Aeromonas salmonicida." Journal of Fish Diseases 46.5 (2023): 545-561.
|
- Keraite, Ieva, et al. "A method for multiplexed full-length single-molecule sequencing of the human mitochondrial genome." Nature Communications 13.1 (2022): 5902.
|
- Ong, Chian Teng, et al. "Adaptive sampling during sequencing reveals the origins of the bovine reproductive tract microbiome across reproductive stages and sexes." Scientific reports 12.1 (2022): 15075.
|
- Wunderlich, Stephanie, et al. "Targeted biallelic integration of an inducible Caspase 9 suicide gene in iPSCs for safer therapies." Molecular Therapy-Methods & Clinical Development 26 (2022): 84-94.v
|
- Russo, Alessia, et al. "Low-input high-molecular-weight DNA extraction for long-read sequencing from plants of diverse families." Frontiers in Plant Science 13 (2022): 1494.
|
- Player, Robert A., et al. "A novel Canis lupus familiaris reference genome improves variant resolution for use in breed-specific GWAS." Life science alliance 4.4 (2021).
|
- Young, Amy E., et al. "Genomic and phenotypic analyses of six offspring of a genome-edited hornless bull." Nature biotechnology 38.2 (2020): 225-232.
|
- Belser, Caroline, et al. "Chromosome-scale assemblies of plant genomes using nanopore long reads and optical maps." Nature plants 4.11 (2018): 879-887.
|
3. Pippin Pulse 與 Bionano分子光譜儀聯用，確保HMW DNA，保證分析結果準確性
- Secomandi, Simona, et al. "A chromosome-level reference genome and pangenome for barn swallow population genomics." Cell Reports 42.1 (2023): 111992.
|
- Dahn, Hollis A., et al. "Benchmarking ultra-high molecular weight DNA preservation methods for long-read and long-range sequencing." GigaScience 11 (2022).
|
- Palmada-Flores M, Orkin J D, Haase B, et al. A high-quality, long-read genome assembly of the endangered ring-tailed lemur (Lemur catta)[J]. GigaScience, 2022, 11.
|
- Canaguier A, Guilbaud R, Denis E, et al. Oxford Nanopore and Bionano Genomics technologies evaluation for plant structural variation detection[J]. BMC genomics, 2022, 23(1): 1-17.
|
- Shukla H, Suryamohan K, Khan A, et al. Near-chromosomal de novo assembly of Bengal tiger genome reveals genetic hallmarks of apex-predation[J]. bioRxiv, 2022.
|
- Rhie, Arang, et al. "Towards complete and error-free genome assemblies of all vertebrate species." Nature 592.7856 (2021): 737-746.
|
- Belser, Caroline, et al. “Telomere-to-telomere gapless chromosomes of banana using nanopore sequencing.” Communications biology 4.1 (2021): 1047.
|
- Zheng, Yuting, et al. "Rapid prenatal diagnosis of Facioscapulohumeral Muscular Dystrophy 1 by combined Bionano optical mapping and karyomapping." Prenatal Diagnosis 40.3 (2020): 317-323.
|
環亞生物科技有限公司作為美國Sage Science公司Pippin Pulse脈沖場電泳系統在中國區的獨家代理商，自2011年以來將Sage Science的產品線引入國內，一直為國內用戶提供專業的全自動核酸片段回收系統的安裝測試、應用培訓，技術支持與售后維護工作，贏得客戶的一致好評與信任。環亞生物科技有限公司將一如既往地支持越來越多的Sage Science用戶。
